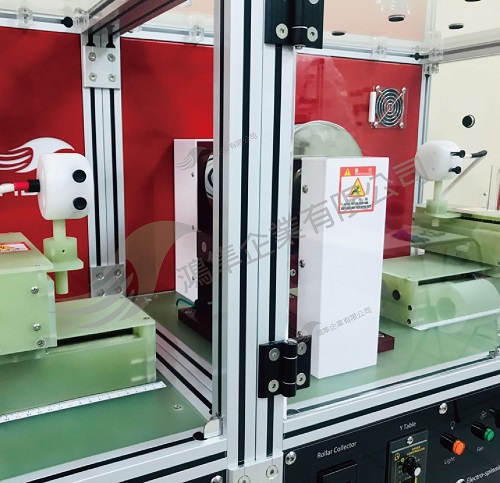

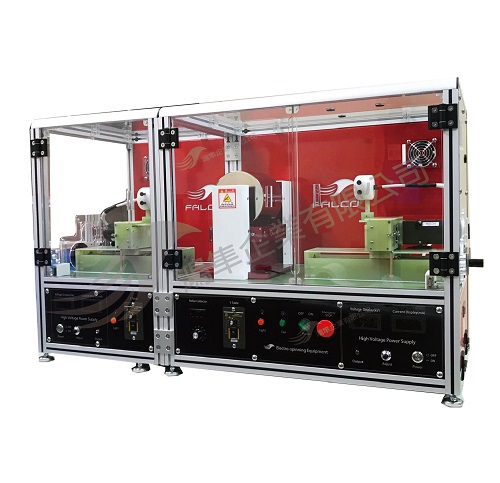

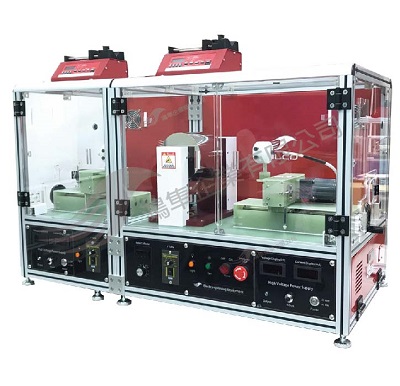

●此機型為經濟型的衍生，其他特色在於可同時進行左右兩邊的紡絲
|

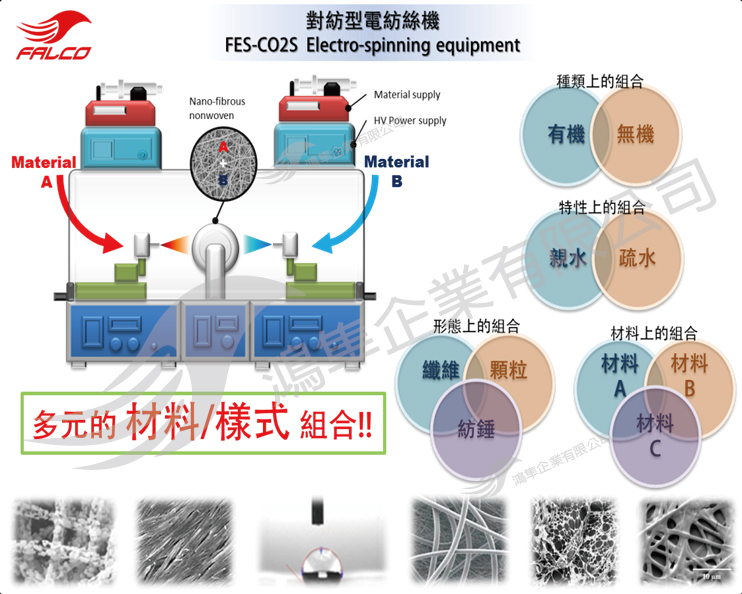

對紡型電紡絲機包含經濟型之特點外，在材料特性與形態結構的組合上更加多元，例如設計奈米纖維與奈米顆粒之間交錯鋪疊，製成特殊功能性之薄膜等
We provide dual-opposite-spinneret electrospinning apparatus for making the nanofibrous membrane with different components or structures constructed by electrospinning nanofibers and electrospraying nanoparticles (layer-by-layer or mixed).
|
|
外觀尺寸
Appearance dimension
|
約1145mm(L)X460mm(D)X680mm(H) |
|
機台重量 Weight |
約80Kg |
|
電源需求 Power supply voltage |
110V/60Hz |
|
注料範圍
Syringe injection speed/volume
|
0.73μl/hr~1257ml/hr (可用針筒範圍 : 1~60ml)(syringe:1-60ml) |
|
紡絲電壓 Voltage |
30kV |
|
紡絲機構 |
X軸手動移動行程範圍200mm (手動)
Y軸自動擺動行程範圍150mm(速度可調)
X axis: working distance ranging from 0-200 mm (manual)
Y axis: working distance ranging from 0-150 mm
(automatic movement with adjustable scanning rate)
|
|
收集面積 Collector area |
450mmx150mm |
|
安全設計 Safety design |
溶劑排除與斷電保護設計
automatic power shutoff system and exhaust ventilation device for solvent vapor
|
|
環境控制 (選配) |
溫度：max 35±2°C／濕度：50%以下 |
|
紡絲單元 Standard spinneret unit |
不銹鋼針組、針頭轉接套組、特製紡絲頭套件
Stainless needle, Connector between spinneret and syringe
|
|
收集單元 Standard collector |
滾筒式 、平板式 Plate collector, Rotating drum collector |
|
紡絲單元
Standard spinneret unit
|
同軸針、矩陣式多針組件、訂製
Sheath-core spinneret, Multi-needle spinneret, Spinneret cover and Customization
|
|
收集單元
Standard collector
|
圓棒式、圓盤式、細胞培養式、訂製
Disc collector, Rotating tube collector, Collector designed for cell culture and Customization.Disc collector, Rotating tube collector, Collector designed for cell culture and Customization
|
|
